- Place of Origin: Shandong china
- Brand Name: Tailai
- Model Number: SZ11
Production introduction

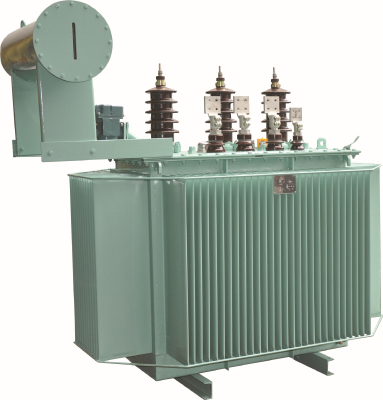

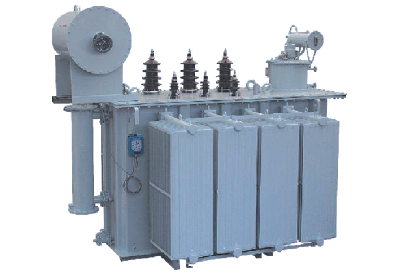

The transformer with load voltage-regulating tap switches called on-load regulating transformer. Under the condition of not cutting load current, through tap switch, numbers of sub-joints will be led out from the transformer winding to change the sub-joint position and change its effective turn. That is, no change of the output voltage through changing the voltage ratio of the transformer. In the process of changing and sub-jointing cycling current is absorbed and limited by the transitional resistance.
Normal operation conditions
Level not exceeding 1000m indoor or out door
Highest environment temperature 40℃ highest average temperature daily 30℃
Highest average temperature yearly 20℃, lowest-25℃
According to user's requirement, we can supply the transformer that will operate under special condition
- Place of Origin: Shandong china
- Brand Name: Tailai
- Model Number: SZ11
Technical performance parameter
Basic performance parameter of SZ11 series 10kV three-phase on-load regulating transformer
Rated capacity(kVA) | Rated voltage(kV) | Label of coupling group | Loss(kw) | Short- circuit impedance(%) | Outline dimensions(mm) | Weight(kg) | Gage horizontal×vertical(mm) | |||||||
High voltage | Tapping range | Low voltage | No-load | With-load | Length | Width | Height | Body weight | Oil weight | Total | ||||
200 | 6 6.3 10 10.5 | ±4×2.5 | 0.4 | Dyn11 Yyn0
| 0.380 | 2.90 | 4.0 | 1605 | 980 | 1555 | 605 | 280 | 1280 | 550×550 |
250 | 0.440 | 3.42 | 1785 | 1000 | 1595 | 670 | 320 | 1330 | 550×550 | |||||
315 | 0.530 | 4.10 | 1940 | 1225 | 1730 | 845 | 435 | 1715 | 660×660 | |||||
400 | 0.640 | 4.95 | 2030 | 1355 | 1855 | 1010 | 480 | 1980 | 660×660 | |||||
500 | 0.760 | 5.89 | 2085 | 1415 | 1925 | 1300 | 530 | 2350 | 660×660 | |||||
630 | 0.960 | 7.26 | 4.5 | 2115 | 1465 | 1985 | 1525 | 715 | 2950 | 820×820 | ||||
800 | 1.120 | 8.89 | 2275 | 1535 | 2275 | 1595 | 800 | 3405 | 820×820 | |||||
1000 | 1.360 | 10.40 | 2365 | 1680 | 2445 | 1730 | 895 | 3420 | 820×820 | |||||
1250 | 1.560 | 12.30 | 2610 | 1725 | 2775 | 2650 | 980 | 4610 | 820×820 | |||||
1600 | 1.920 | 14.70 | 2615 | 1855 | 2815 | 3105 | 1210 | 5350 | 1070×1070 | |||||
2000 | 2.270 | 18.60 | 5.0 | 2785 | 2480 | 2820 | 3520 | 1780 | 6800 | 1070×1070 | ||||
2500 | 2.680 | 21.60 | 2825 | 2510 | 2840 | 3985 | 2025 | 8040 | 1070×1070 | |||||
Basic performance parameter of SZ11 series 35kV three-phase on-load regulating transformer
Rated capacity(kVA) | Rated voltage(kV) | Label of coupling group | Loss(kw) | Short-circuit impedance(%) | Outline dimensions(mm) | Weight(kg) | Gage horizontal×vertical(mm) | |||||||
High voltage | Tapping range | Low voltage | No-load | With-load | Length | Width | Height | Body weight | Oil weight | Total | ||||
2000 | 35 | ±3×2.5 | 6.3 10.5 | Yd11 | 2.30 | 19.2 | 6.5 | 3110 | 2200 | 2810 | 2775 | 1560 | 5965 | 1070×1070 |
2500 | 2.72 | 20.6 | 3110 | 2540 | 2985 | 3300 | 1750 | 6950 | 1070×1070 | |||||
3150 | 35- 38.5 | ±3×2.5 | 6.3 10.5 | 3.23 | 24.7 | 7.0 | 3225 | 2730 | 2845 | 3770 | 1970 | 7900 | 1070×1070 | |
4000 | 3.87 | 29.1 | 3315 | 2920 | 3075 | 4520 | 2260 | 9110 | 1070×1070 | |||||
5000 | 4.64 | 34.2 | 3485 | 3025 | 3150 | 5480 | 2475 | 10855 | 1070×1070 | |||||
6300 | 5.63 | 36.7 | 8.0 | 3595 | 2910 | 3215 | 6810 | 2620 | 12300 | 1475×1475 | ||||
8000 | 35- 38.5 | ±3×2.5 | 6.3 6.6 10.5 | YNd11 | 7.87 | 40.6 | 4075 | 3055 | 3600 | 8066 | 3300 | 15300 | 1475×1475 | |
10000 | 9.28 | 48.0 | 4110 | 2800 | 3660 | 9705 | 3750 | 17858 | 1475×1475 | |||||
12500 | 10.90 | 56.8 | 4575 | 3015 | 3845 | 10963 | 4215 | 20042 | 1475×1475 | |||||
16000 | 13.10 | 70.3 | 5240 | 3300 | 4620 | 13140 | 4900 | 23740 | 1475×1475 | |||||
20000 | 15.50 | 82.7 | 5365 | 3420 | 4665 | 15653 | 5700 | 28186 | 1475×1475 | |||||
25000 | 18.30 | 97.8 | 10.0 | 5100 | 4350 | 4150 | 18545 | 8500 | 39500 | 1475×1475 | ||||
31500 | 21.80 | 116.0 | 5200 | 4350 | 4300 | 23535 | 9500 | 43500 | 1475×1475 | |||||
