Product introduction

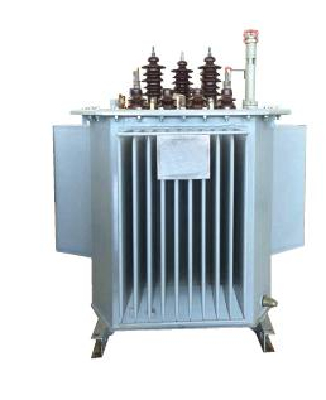

S13 series oil- immersed low loss distribution transformer is a new generation of energy-saving transformer that takes quality silicon steel sheet as iron core materials.
S13 power distribution transformers, as far as core structure is concerned, are divided into laminated core and wound core, the structure of the product with laminated core maintains all items of advantages in S11 SERIES, but it has been shown more superior quality if equipped with silicon steel sheet. Not only can no-load loss and current be largely decreased, but it can be apparently lowered for the noises with more superior properties and more comfortable installation for those premises needed for quietness. Wound core is a closed core framework by mechanically winding method and then annealing: coils shall be specially wound by the use of special winder, due to limitation of structure, cubic wound core structural product is generally appropriate for transformer with lower capacity.
- Place of Origin: Shandong china
- Brand Name: Tailai
- Model Number: S13
Rated capacity(kVA) | Rated voltage(kV) | Label of coupling group | Loss(kw) | Short- circuit impedance(%) | Outline dimensions(mm) | Weight(kg) | Gage horizontal×vertical(mm) | |||||||
High voltage | Tapping range | Low voltage | No-load | Withstand | Length | Width | Height | Body weight | Oil weight | Total | ||||
30 | 6 6.3 10 10.5 | ±2×2.5 ±5 | 0.4 | Dyn11 Yyn0
| 0.080 | 0.630/0.600 | 4.0 | 690 | 480 | 935 | 170 | 70 | 285 | 400×400 |
50 | 0.100 | 0.910/0.870 | 725 | 610 | 900 | 200 | 76 | 355 | 400×400 | |||||
63 | 0.110 | 1.090/1.040 | 760 | 650 | 1035 | 300 | 84 | 465 | 400×400 | |||||
80 | 0.130 | 1.310/1.250 | 790 | 570 | 1090 | 350 | 95 | 515 | 550×550 | |||||
100 | 0.150 | 1.580/1.500 | 995 | 700 | 935 | 320 | 98 | 538 | 550×550 | |||||
125 | 0.170 | 1.890/1.800 | 840 | 690 | 1155 | 475 | 115 | 680 | 550×550 | |||||
160 | 0.200 | 2.310/2.200 | 870 | 730 | 1130 | 505 | 130 | 775 | 550×550 | |||||
200 | 0.240 | 2.730/2.600 | 1015 | 715 | 1070 | 505 | 143 | 850 | 550×550 | |||||
250 | 0.290 | 3.200/3.050 | 1150 | 730 | 1210 | 690 | 170 | 1035 | 550×550 | |||||
315 | 0.340 | 3.830/3.650 | 1290 | 915 | 1070 | 680 | 154 | 1078 | 660×660 | |||||
400 | 0.410 | 4.520/4.300 | 1455 | 1020 | 1115 | 830 | 202 | 1347 | 660×660 | |||||
500 | 0.480 | 5.410/5.150 | 1385 | 920 | 1410 | 1195 | 255 | 1760 | 660×660 | |||||
630 | Dyn11 Yyn0 | 0.570 | 6.200 | 4.5 | 1420 | 890 | 1445 | 1455 | 295 | 2085 | 820×820 | |||
800 | 0.700 | 7.500 | 1490 | 960 | 1505 | 1710 | 350 | 2460 | 820×820 | |||||
1000 | 0.830 | 10.300 | 1670 | 1160 | 1495 | 1730 | 395 | 2655 | 820×820 | |||||
1250 | 0.970 | 12.000 | 1720 | 1160 | 1615 | 2060 | 475 | 3300 | 820×820 | |||||
1600 | 1.170 | 14.500 | 1810 | 1230 | 1635 | 2735 | 620 | 4215 | 820×820 | |||||
2000 | 1.550 | 18.300 | 5.0 | 2145 | 2150 | 2390 | 2855 | 840 | 4935 | 1070×1070 | ||||
2500 | 1.830 | 21.200 | 2600 | 2250 | 2470 | 3600 | 1050 | 6225 | 1070×1070 | |||||
