- Place of Origin: Shandong china
- Brand Name: Tailai
- Model Number: S11

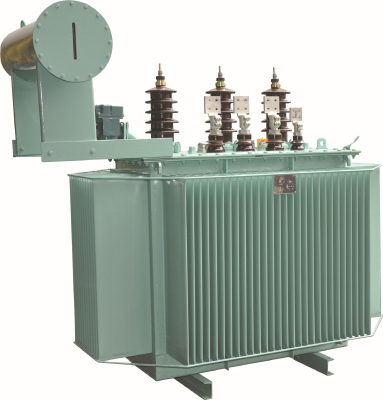

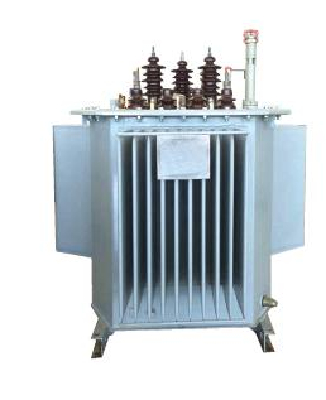

The product is mainly utilized for dropping the voltage directly from 35kV(power voltage) to 0.4kV(distribution power) under which the power can be supplied to the final consumers, thus the power transmission process has been omitted, operation and maintenance fee has been lowered. The products have remarkable social benefit.
The iron core uses high quality cold rolled silicon steel sheet and domestic advanced horizontal cutting line. Itscutting burr is less than 0.02. It's declining lap, no punching, no stack on the iron yoke. The iron core is good piled and good H glue is used,which makes it possible to form a firm and regular structure. It reduces the no-load loss, no-load current and noise.
Technical performance parameter
- Place of Origin: Shandong china
- Brand Name: Tailai
- Model Number: S11
Technical performance parameter
Basic performance parameter of S11 type 35kV double winding without excitation distribution transformer
Rated capacity(kVA) | Rated voltage(kV) | Label of coupling group | Loss(kw) | Short- circuit impedance (%) | Outline dimensions(mm) | Weight(kg) | Gage horizontal× vertical (mm) | |||||||
High voltage | Tapping range | Low voltage | No-load | Withstand | Length | Width | Height | Body weight | Oil weight | Total | ||||
50 | 35 38.5 | ±2*2.5% ±5 | 0.4 | Dyn11 Yyn0 | 0.160 | 1.20/1.14 | 6.5 | 1195 | 895 | 1825 | 300 | 330 | 860 | 660×660 |
100 | 0.230 | 2.01/1.91 | 1200 | 935 | 1935 | 470 | 385 | 1130 | 660×660 | |||||
125 | 0.270 | 2.37/2.26 | 1235 | 940 | 1955 | 550 | 465 | 1335 | 660×660 | |||||
160 | 0.280 | 2.82/2.68 | 1285 | 995 | 1960 | 580 | 485 | 1475 | 660×660 | |||||
200 | 0.340 | 3.32/3.16 | 1310 | 1090 | 1985 | 680 | 595 | 1755 | 660×660 | |||||
250 | 0.400 | 3.95/3.76 | 1450 | 1150 | 2010 | 860 | 650 | 2000 | 660×660 | |||||
315 | 0.480 | 4.75/4.53 | 1930 | 1155 | 2020 | 980 | 765 | 2290 | 820×820 | |||||
400 | 0.580 | 5.74/5.47 | 1850 | 1065 | 2115 | 1170 | 885 | 2725 | 820×820 | |||||
500 | 0.680 | 6.91/6.58 | 2040 | 1205 | 2415 | 1340 | 960 | 3090 | 820×820 | |||||
630 | 0.830 | 7.86 | 2140 | 1240 | 2515 | 1550 | 980 | 3315 | 820×820 | |||||
800 | 0.980 | 9.40 | 2305 | 1540 | 2685 | 1670 | 950 | 3585 | 820×820 | |||||
1000 | 1.150 | 11.50 | 2545 | 1590 | 2590 | 2280 | 1305 | 4920 | 820×820 | |||||
1250 | 1.400 | 13.90 | 2495 | 1615 | 2675 | 2415 | 1475 | 5055 | 1070×1070 | |||||
1600 | 1.690 | 16.60 | 2680 | 2010 | 2970 | 2600 | 1490 | 5450 | 1070×1070 | |||||
2000 | 1.990 | 19.70 | 2780 | 1950 | 2700 | 2800 | 1400 | 6200 | 1070×1070 | |||||
2500 | 2.360 | 23.20 | 2860 | 2050 | 2800 | 3000 | 1580 | 7000 | 1070×1070 | |||||
630 | 35 | ±5% or ±2*2.5% | 3.15 6.3 10.5
| Yd11 | 0.830 | 7.86 | 6.5 | 2140 | 1050 | 2220 | 1580 | 925 | 3275 | 820×820 |
800 | 0.980 | 9.40 | 2275 | 1330 | 2400 | 1870 | 956 | 3525 | 820×820 | |||||
1000 | 1.150 | 11.50 | 2450 | 1670 | 2470 | 1805 | 970 | 3705 | 820×820 | |||||
1250 | 1.400 | 13.90 | 2565 | 1770 | 2615 | 2020 | 1010 | 4030 | 820×820 | |||||
1600 | 1.690 | 16.60 | 2680 | 1780 | 2685 | 2365 | 1090 | 4545 | 820×820 | |||||
2000 | 2.170 | 18.30 | 2800 | 1890 | 2755 | 2745 | 1200 | 5215 | 1070×1070 | |||||
2500 | 2.560 | 19.60 | 2830 | 1980 | 2820 | 3320 | 1330 | 6080 | 1070×1070 | |||||
3150 | 35-38.5 | 3.040 | 23.0 | 7.0 | 2850 | 2165 | 2960 | 3850 | 1520 | 7050 | 1070×1070 | |||
4000 | 3.610 | 27.3 | 2855 | 2250 | 3100 | 4600 | 1750 | 8490 | 1070×1070 | |||||
5000 | 4.320 | 31.3 | 3000 | 2365 | 3155 | 5525 | 1950 | 8975 | 1070×1070 | |||||
6300 | 5.240 | 35.0 | 8.0 | 3075 | 2530 | 3250 | 6770 | 2320 | 11490 | 1475×1475 | ||||
8000 | 35-38.5 | ±2*2.5% | 3.15 3.3 6.3 6.6 10.5
| YNd11 | 7.200 | 38.4 | 3130 | 2645 | 3710 | 8093 | 2500 | 14120 | 1475×1475 | |
10000 | 8.700 | 45.3 | 3565 | 2750 | 3830 | 6983 | 2850 | 16480 | 1475×1475 | |||||
12500 | 10.000 | 53.8 | 4150 | 2785 | 3950 | 10932 | 3250 | 18345 | 1475×1475 | |||||
16000 | 12.100 | 65.8 | 4480 | 2860 | 4720 | 13330 | 3750 | 22307 | 1475×1475 | |||||
20000 | 14.400 | 79.5 | 4560 | 3225 | 4865 | 17035 | 4365 | 29975 | 1475×1475 | |||||
25000 | 17.000 | 94.0 | 10.0 | 4610 | 3490 | 4910 | 21310 | 5280 | 35370 | 1475×1475 | ||||
31500 | 20.200 | 112.0 | 4760 | 3750 | 5100 | 25310 | 6650 | 40800 | 1475×1475 | |||||
