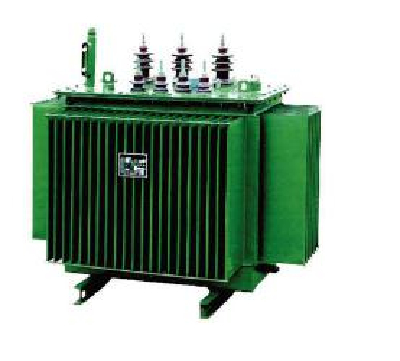

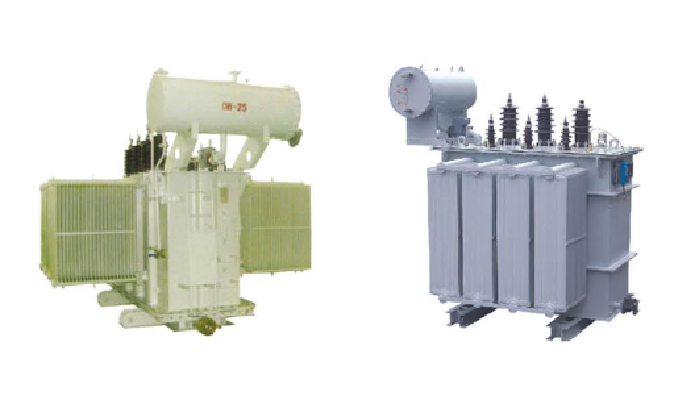

S11 Series Oil-immersed Distribution Transformer (35kV)
Product introduction
The product follows the GB & IEC standard of Power Transformer. It's used for substation in power system and subscriber station of 35kV. It adopts the most advanced scientific research in domestic. It has the characteristics of new structure, low loss, small size and high ability of anti short-circuit.
The product is mainly utilized for dropping the voltage directly from 35kV(power voltage) to 0.4kV(distribution power) under which the power can be supplied to the final consumers, thus the power transmission process has been omitted, operation and maintenance fee has been lowered. The products have remarkable social benefit.
The iron core uses high quality cold rolled silicon steel sheet and domestic advanced horizontal cutting line. Its cutting burr is less than 0.02. It's declining lap, no punching, no stack on the iron yoke. The iron core is good piled and good H glue is used,which makes it possible to form a firm and regular structure. It reduces the no-load loss, no-load current and noise.
- Place of Origin: Shandong china
- Brand Name: Tailai
- Model Number: S11
S11 10KV
Rated capacity (k VA) | Rated voltage (k V) | Label of coupling group | Loss(w) | Outline dimensions(mm) | Weight(kg) | Gage horizontal× vertical (mm) | Short-circuit impedance (%) | ||||||
High voltage | Low voltage | No-load | Withstand | Length | Width | Height | Body weight | Oil weight | Total | ||||
30 | 6 6.3 10 10.5 | 0.4 | Dyn11 Yyn0 | 0.100 | 0.630/0.600 | 1025 | 625 | 995 | 145 | 67 | 330 | 400×400 | 4.0 |
50 | 0.130 | 0.910/0.870 | 1075 | 640 | 1025 | 224 | 90 | 410 | 400×400 | ||||
63 | 0.150 | 1.090/1.040 | 1125 | 665 | 1065 | 240 | 105 | 480 | 400×400 | ||||
80 | 0.180 | 1.310/1.250 | 1150 | 675 | 1105 | 328 | 120 | 560 | 400×400 | ||||
100 | 0.200 | 1.580/1.500 | 1180 | 695 | 1115 | 340 | 154 | 590 | 400×400 | ||||
125 | 0.240 | 1.890/1.800 | 1200 | 705 | 1205 | 390 | 168 | 680 | 550×550 | ||||
160 | 0.280 | 2.310/2.200 | 1235 | 725 | 1225 | 499 | 179 | 840 | 550×550 | ||||
200 | 0.340 | 2.730/2.600 | 1295 | 745 | 1255 | 592 | 188 | 960 | 550×550 | ||||
250 | 0.400 | 3.200/3.650 | 1365 | 755 | 1275 | 724 | 245 | 1120 | 550×550 | ||||
315 | 0.480 | 3.830/3.650 | 1335 | 780 | 1335 | 712 | 300 | 1150 | 550×550 | ||||
400 | 0.570 | 4.520/4.300 | 1395 | 825 | 1375 | 953 | 320 | 1430 | 550×550 | ||||
500 | 0.680 | 5.410/5.150 | 1465 | 845 | 1455 | 1120 | 340 | 1690 | 660×660 | ||||
630 | 0.810 | 6.200 | 1565 | 925 | 1475 | 1289 | 440 | 1960 | 660×660 | 4.5 | |||
800 | 0.980 | 7.500 | 1685 | 1095 | 1575 | 1430 | 490 | 2350 | 820×820 | ||||
1000 | 1.150 | 10.300 | 1855 | 1095 | 1685 | 1790 | 560 | 2720 | 820×820 | ||||
1250 | 1.360 | 12.000 | 1925 | 1195 | 1715 | 2080 | 650 | 3300 | 820×820 | ||||
1600 | 1.640 | 14.500 | 1995 | 1235 | 1805 | 2300 | 720 | 3800 | 820×820 | ||||
2000 | 1.940 | 18.300 | 2155 | 1275 | 1915 | 3130 | 790 | 5145 | 820×820 | 5.0 | |||
2500 | 2.290 | 21.200 | 2265 | 1385 | 1945 | 4198 | 930 | 6420 | 1070×1070 | ||||
S11 2 0KV
Rated capacity (k VA) | Rated voltage (k V) | Label of coupling group | Loss(w) | Outline dimensions(mm) | Weight(kg) | Gage horizontal× vertical (mm) | Short-circuit impedance (%) | ||||||
High voltage | Low voltage | No-load | Withstand | Length | Width | Height | Body weight | Oil weight | Total | ||||
30 | 20 | 0.4 | Dyn11 Yyn0 | 0.100 | 0.690/0.660 | 995 | 580 | 1085 | 200 | 130 | 520 | 400×400 | 5.5 |
50 | 0.130 | 1.010/0.960 | 1065 | 605 | 1125 | 280 | 160 | 650 | 400×400 | ||||
63 | 0.150 | 1.200/1.150 | 1085 | 615 | 1165 | 320 | 180 | 700 | 400×400 | ||||
80 | 0.180 | 1.440/1.370 | 1125 | 625 | 1185 | 370 | 190 | 790 | 400×400 | ||||
100 | 0.200 | 1.730/1.650 | 1135 | 630 | 1205 | 410 | 200 | 850 | 400×400 | ||||
125 | 0.240 | 2.080/1.980 | 1155 | 645 | 1255 | 460 | 210 | 940 | 550×550 | ||||
160 | 0.290 | 2.540/2.420 | 1325 | 775 | 1275 | 550 | 250 | 1100 | 550×550 | ||||
200 | 0.340 | 3.000/2.860 | 1390 | 780 | 1360 | 650 | 315 | 1500 | 660×660 | ||||
250 | 0.400 | 3.520/3.350 | 1420 | 790 | 1390 | 730 | 335 | 1580 | 660×660 | ||||
315 | 0.480 | 4.21/4.01 | 1420 | 790 | 1440 | 810 | 350 | 1680 | 660×660 | ||||
400 | 0.570 | 4.97/4.73 | 1450 | 800 | 1485 | 1000 | 400 | 1900 | 660×660 | ||||
500 | 0.680 | 5.94/5.66 | 1495 | 815 | 1650 | 1190 | 450 | 2150 | 820×820 | ||||
630 | 0.810 | 6.82 | 1530 | 830 | 1685 | 1380 | 470 | 2350 | 820×820 | 6.0 | |||
800 | 0.980 | 8.25 | 1800 | 1095 | 1055 | 2210 | 560 | 2720 | 820×820 | ||||
1000 | 1.150 | 11.30 | 1780 | 1160 | 1115 | 2310 | 650 | 3300 | 820×820 | ||||
1250 | 1.380 | 13.20 | 1770 | 1150 | 1490 | 2930 | 720 | 3800 | 820×820 | ||||
1600 | 1.660 | 16.00 | 1775 | 1150 | 1725 | 3520 | 790 | 3800 | 820×820 | ||||
2000 | 1.950 | 19.1 | 1775 | 1150 | 2185 | 4475 | 930 | 6240 | 1070×1070 | ||||
2500 | 2340 | 22.20 | 1785 | 1160 | 2800 | 6160 | 1070 | 7300 | 1070×1070 | ||||
